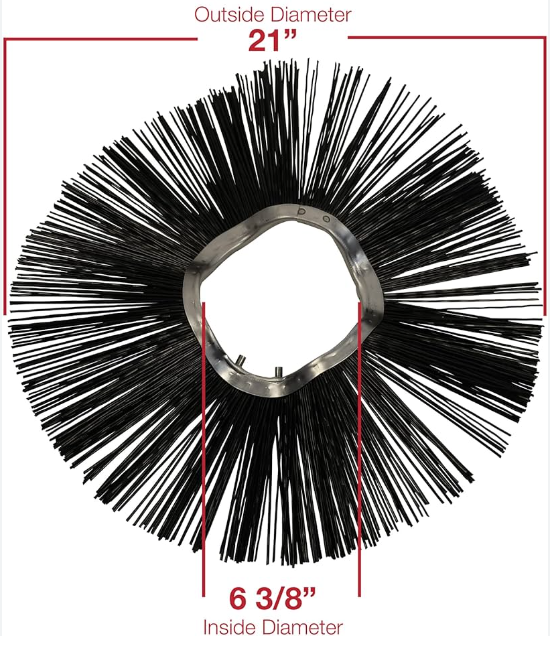

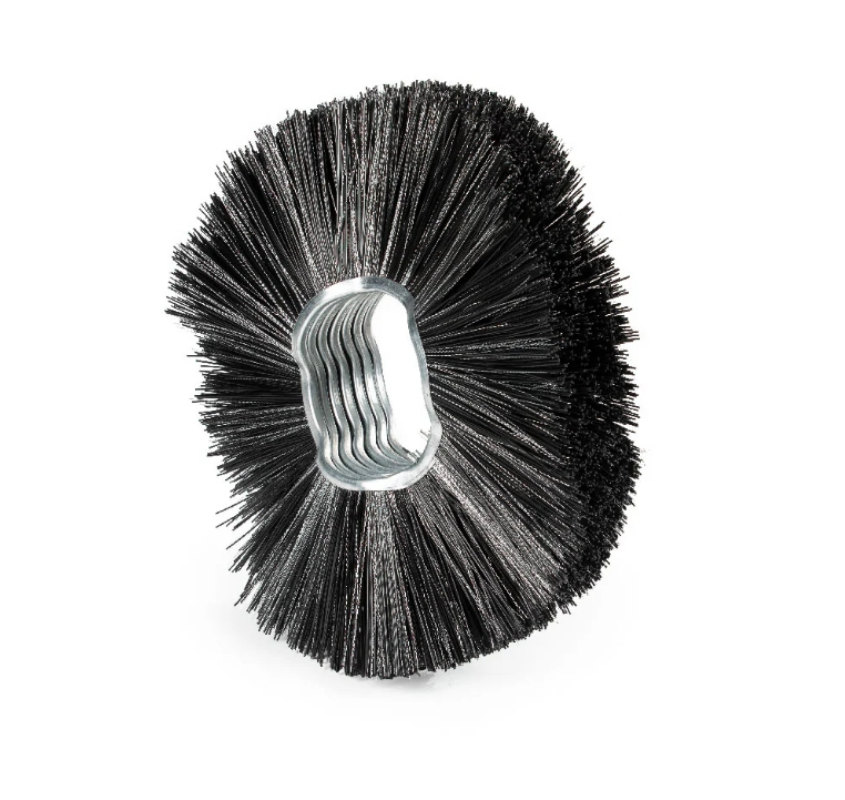

| Inner Diameter | 6 3/8 Inch |
| Outer Diameter | 21 Inch |
| Filament | Polypropylene |
| Central Ring Shape | Convoluted |
| Color | Red, or customized |
Specification

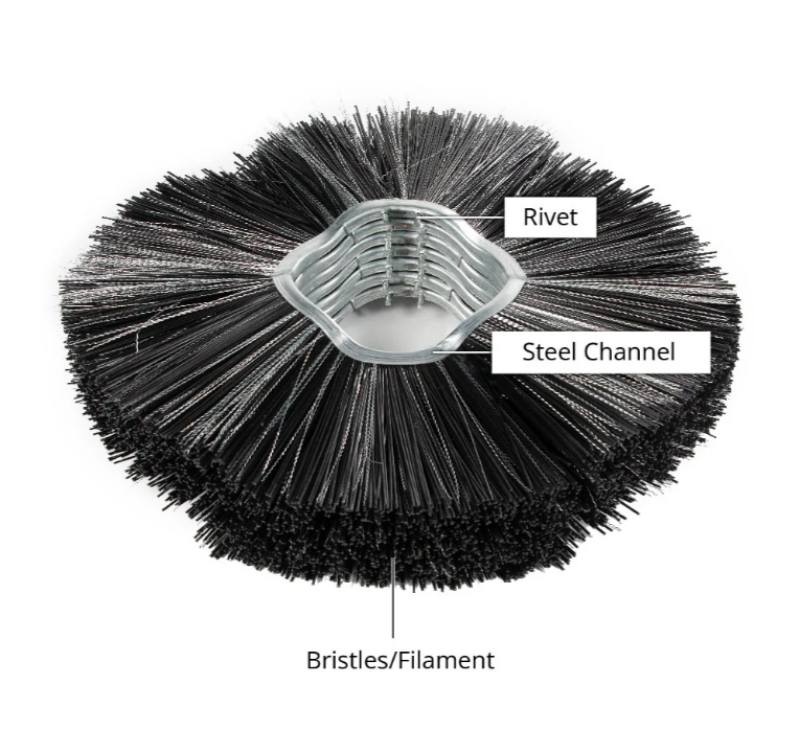

Filament Material: PP, reinforced PP, PP+manganese steel wire and all manganese steel wire.
Filament color: Red, Blue, Green, Black or customized.
Size: Regular size or customized

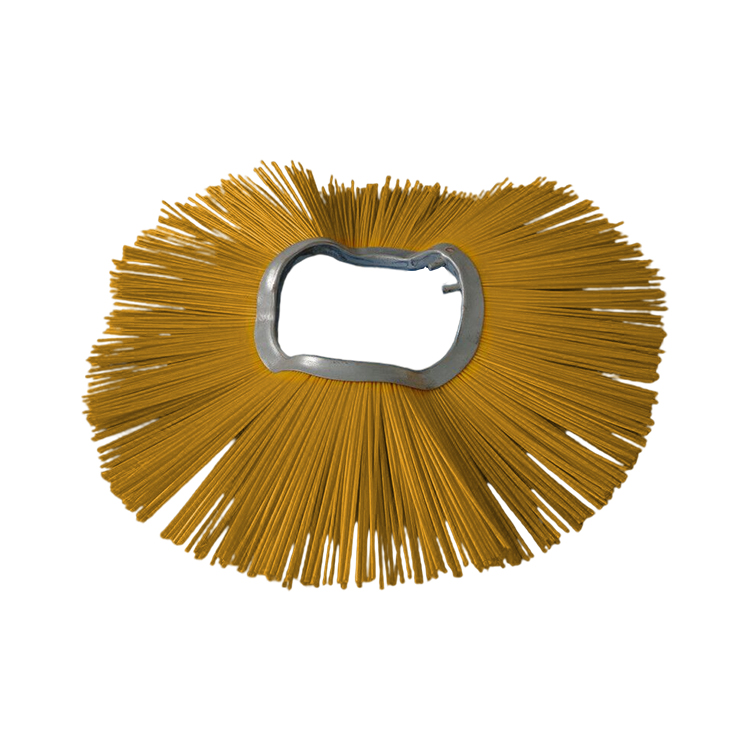

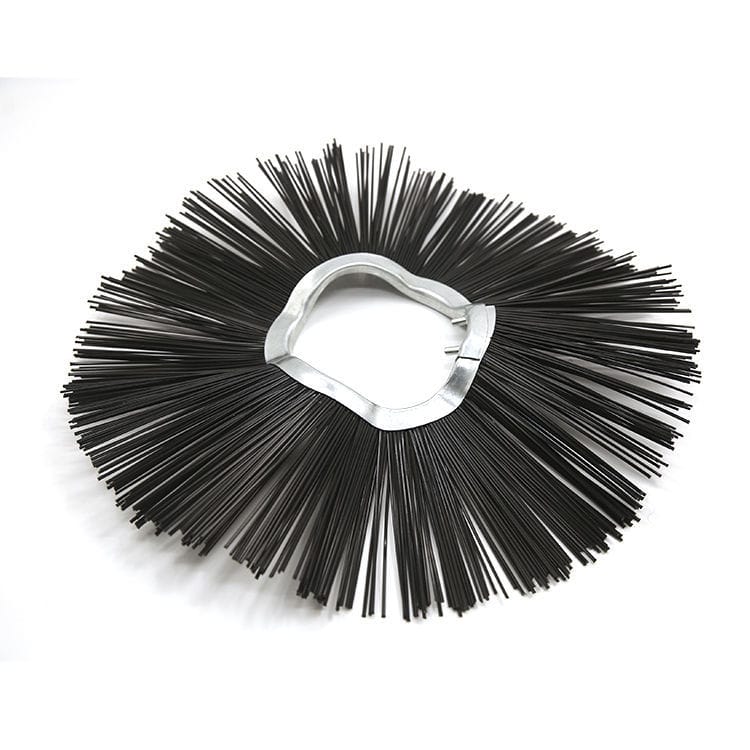

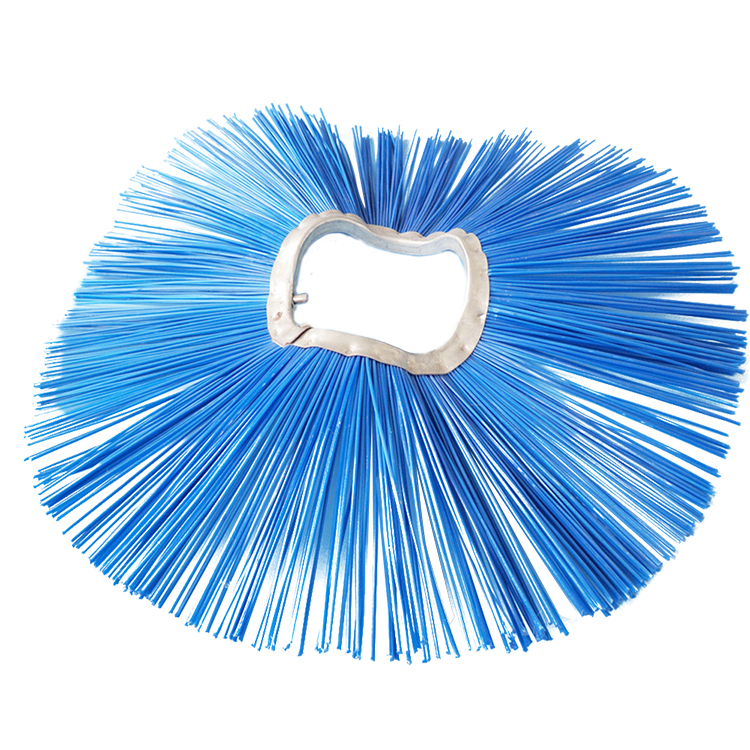

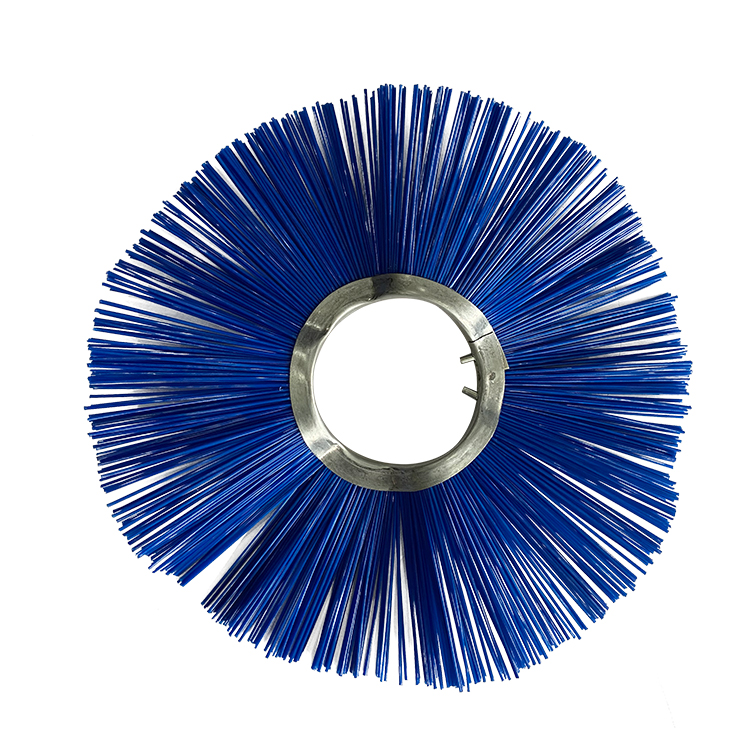

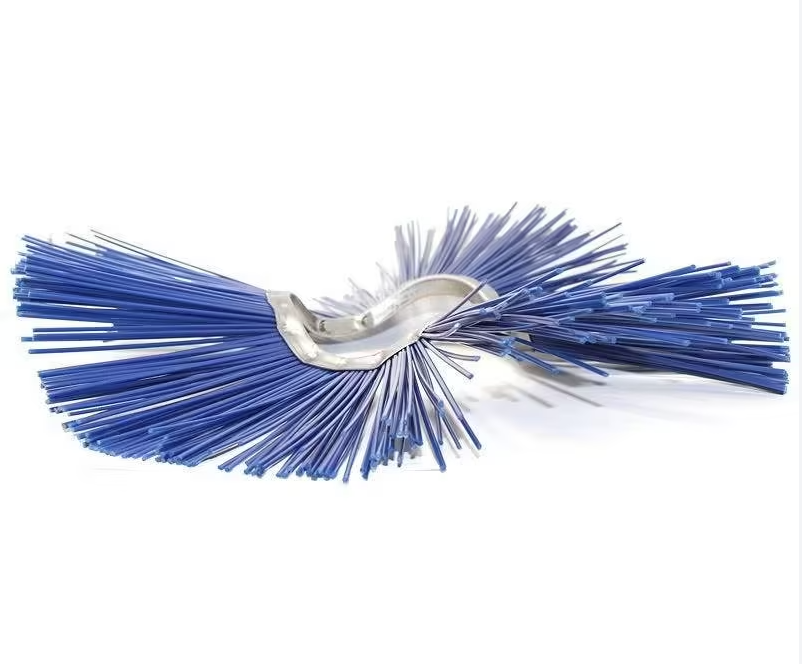

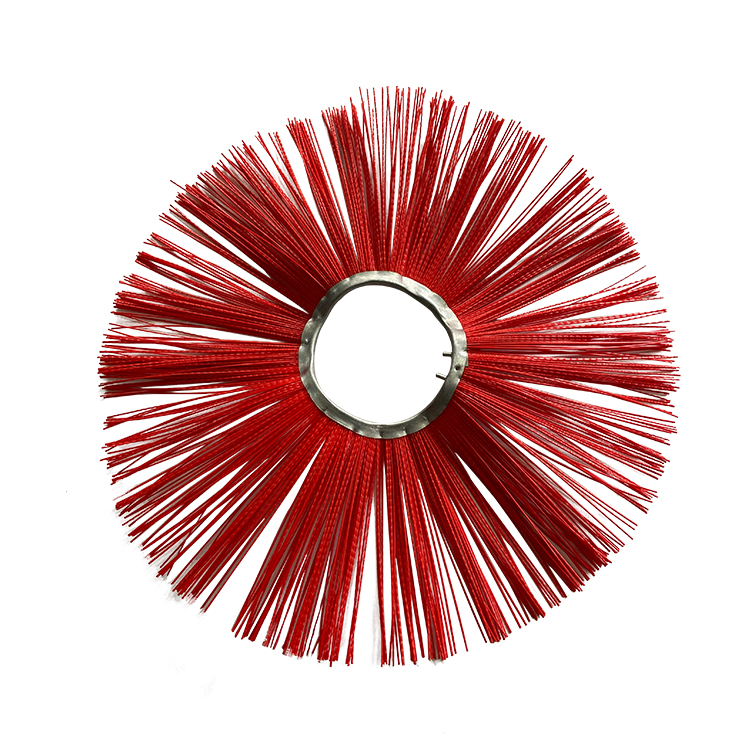

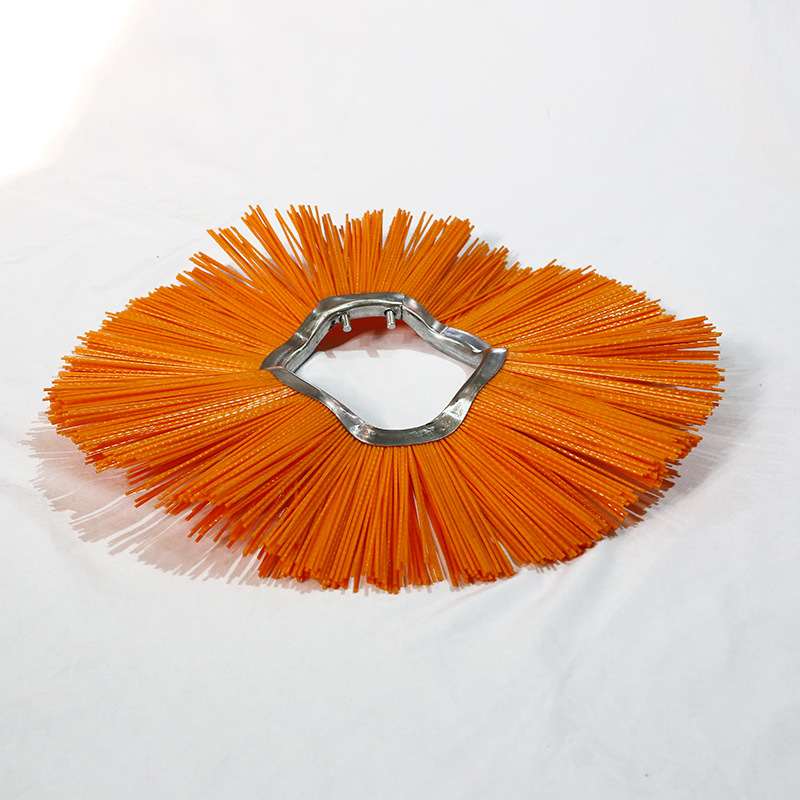

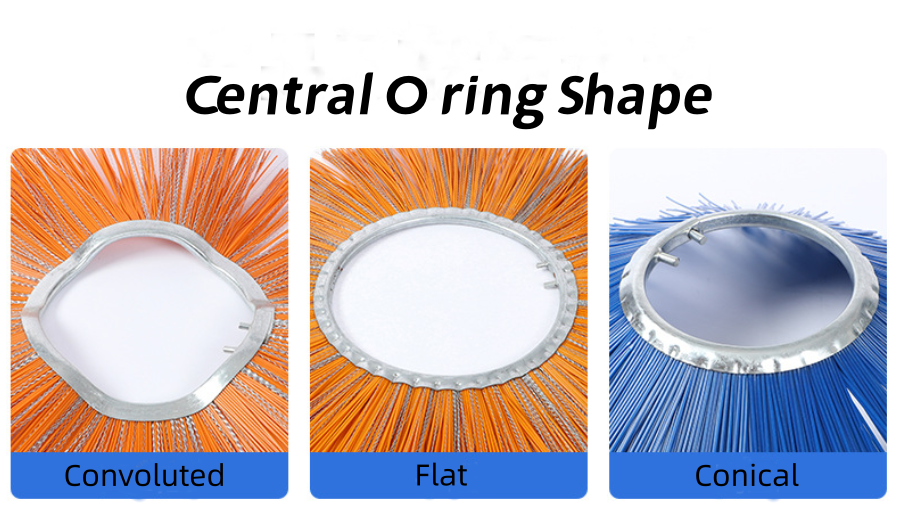

Central Ring Types: Flat ,Convoluted, Conical
Road Sweeper Wafer Brush Sizes:
| Center Ring shape | ID(mm) | OD(mm) | Filament Material |
Flat | 66mm, 78mm,100mm,110mm, 128mm,130mmm,165mm,169mm,177mm, 180mm,185mm,205mm,222mm,240mm, 255mm,260mm,275mm,280m,300mm, 320mm,495mm. | 500mm,508mm,510mm,533mm,560mm, 660mm,800mm,813mm,915mm,etc. OD can be customized based on your demands. | PP PP& Steel Wire Comb Steel wire |
Convoluted | 115mm,128mm,162mm,165mm,171mm, 180mm,185mm,205mm,222mm,230mm, 235mm,135mm,255mm,264mm,300mm |
Applications
Model Compatibility
| Manufacturer | Models |
| Paladin | MRH, MRHL, RMRM, CTM, CTH |
| Bobcat | 84" Sweeper Bucket |
| Broce | Turf Boss, BW-260, Skid Steer Angle Broom |
| Quick Attach | 48" & 60" |
| John Deere | 246 - 60" Rotary, BP-84, BR-60, BR-72, BR-84 |
| Kubota | B2814 60" & V5266 66" |
| LayMor | 3', 4', 6', 6HC, 8', SweepMaster 300, 8HC |
| Sweepster | C-36, HB-60, L4800-4', L4800-5', L4800-6', CTM-4', CTM-5', CTM-6', TR-48 |
| Terramite | TSS36 (6') & TSS38 (8') |
